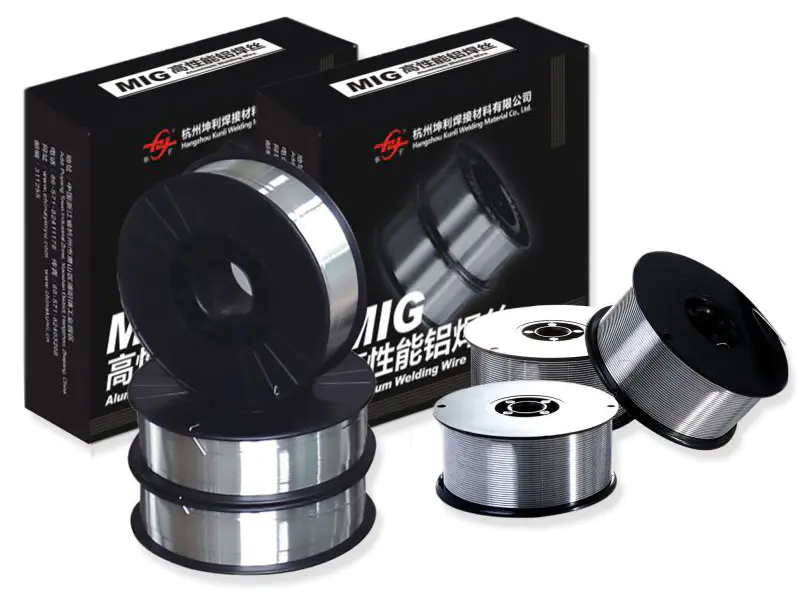

ER4043 Silicon Aluminum Welding Wire Comprehensive Guide and Applications

Introduction

In modern industrial welding, ER4043 Silicon Aluminum Welding Wire has become a widely used filler material for aluminum alloy welding. Its core advantages include excellent molten pool fluidity, stable welding quality, and crack resistance, ensuring high reliability in automotive, aerospace, machinery, and construction applications.

Key parameters of ER4043 welding wire:

1. Basics of ER4043 Silicon Aluminum Welding Wire

1.1 Overview of ER4043

ER4043 is an aluminum-silicon alloy welding wire containing 4.5%~6% silicon. Its excellent molten pool fluidity and crack resistance reduce shrinkage stress and improve weld joint strength and durability.

1.2 Applications

• Automotive: body panels, chassis components
• Aerospace: fuselage, frame structures
• Construction machinery: frames and load-bearing structures
• Industrial equipment: pipelines, heat exchangers, containers

1.3 Welding Advantages

• Excellent molten pool fluidity for uniform welds
• High crack resistance
• Applicable to TIG, MIG, and manual welding
• Simple post-weld treatment, maintains mechanical properties

2. Importance of Filler Metal Selection

Choosing the right filler metal is crucial for weld quality, strength, and durability. ER4043 Silicon Aluminum Welding Wire is an ideal choice for high-performance aluminum alloy welding.

2.1 Advantages

• Silicon content 4.5%~6% reduces shrinkage stress
• Melting point 577~600℃ controls molten pool stability
• Post-weld tensile strength 145~190 MPa, elongation 8~12%

2.2 Mechanical Property Comparison

3. Aluminum Alloy Welding Techniques

Aluminum alloy welding features high thermal conductivity, low melting point, and susceptibility to hot cracking. ER4043 plays a key role in controlling weld quality.

3.1 Welding Methods and Parameters

3.2 Technical Considerations

• Clean base material surface, remove oil and oxide
• Butt joint gap 0.5~2 mm
• Segmented welding to reduce distortion
• Preheat thick plates 50~100℃
• Slow post-weld cooling

4. Molten Pool Fluidity Analysis

Molten pool fluidity directly affects weld quality and structural reliability. ER4043 Silicon Aluminum Welding Wire optimizes flow, reducing porosity and defects.

5. Weld Crack Control

5.1 Types of Cracks

• Hot Cracks: occur during cooling, mainly at weld center and root
• Cold Cracks (Stress Cracks): occur in HAZ due to high residual stress

5.2 Control Strategies

• Clean oxide and oil before welding
• Optimize current, voltage, speed, and preheat
• Segmented or intermittent welding to reduce stress
• Slow post-weld cooling or local heat treatment if needed

5.3 Performance Comparison

6. Practical Applications

6.1 Automotive

Used in body panels and chassis. TIG 80~200A, MIG 120~250A. Advantages: crack resistance, stable pool, beautiful welds.

6.2 Aerospace

Used in fuselage and frame structures. Plate thickness 1~12mm, TIG 50~150A. Advantages: high-strength welds, reduced cracking risk.

6.3 Construction Machinery

Frames and load-bearing structures. MIG 150~300A, preheat 50~80℃. Advantages: high ductility, withstand heavy loads.

6.4 Industrial Equipment

Pipelines, containers, heat exchangers. Plate thickness 1~25mm, TIG 50~250A. Advantages: adaptable to multiple welding methods, minimal post-treatment needed.

7. FAQ: ER4043 Silicon Aluminum Welding Wire

FAQ 1: What are the main advantages of ER4043 Silicon Aluminum Welding Wire?

Excellent molten pool fluidity, high tensile strength (145~190 MPa), and elongation (8~12%) make ER4043 ideal for aluminum alloy welding. At Hangzhou Kunli welding materials Co., Ltd., we provide ER4043 with international certifications like DB, CE, ABS, DNV, and CCS.

FAQ 2: What welding methods and parameters are recommended?

Suitable for TIG, MIG, and manual welding. Typical parameters: TIG 50~250A/10~20V, MIG 100~300A/15~25V, Manual 50~200A. Preheat thick plates 50~100℃, welding speed 2~10 cm/min. Kunli ensures stable quality and performance.

FAQ 3: How does ER4043 improve weld seam quality?

Enhances molten pool fluidity, reduces shrinkage stress, increases tensile strength, ensures defect-free welds. Adaptable to TIG, MIG, and manual welding.

FAQ 4: What are common applications?

• Automotive: body panels, doors, chassis
• Aerospace: fuselage, frames
• Construction machinery: frames, load-bearing structures
• Industrial equipment: pipelines, heat exchangers, containers

FAQ 5: How does ER4043 prevent welding cracks?

Silicon content reduces cooling shrinkage stress. Stable molten pool plus optimized parameters prevents hot and cold cracks.

FAQ 6: Advantages over ordinary aluminum wire?

FAQ 7: Who manufactures high-quality ER4043?

Hangzhou Kunli welding materials Co., Ltd. in Puyang Town, Xiaoshan District, Hangzhou, specializes in high-performance aluminum alloy welding wire with over 20 years of experience and strict quality control.

FAQ 8: Certifications and quality standards?

DB, CE, ABS, DNV, CCS. Advanced testing ensures consistent high performance for demanding applications.

FAQ 9: Global production and export capacity?

Over 200MT/month, 50% exported to 30+ countries including USA, Mexico, Southeast Asia, Japan, Korea, Australia, New Zealand. Supplier to China CRRC and Maersk, replacing imported materials.

FAQ 10: Collaboration with research institutes?

Collaborates with Beijing Nonferrous Metals Research Institute, Central South University, Shanghai Cable Research Institute to drive innovation and maintain leadership in ER4043 welding wire production.

Conclusion

ER4043 Silicon Aluminum Welding Wire provides excellent fluidity, crack resistance, and mechanical strength. Combined with Hangzhou Kunli welding materials Co., Ltd. professional R&D, advanced equipment, and international certifications, it is widely applied in automotive, aerospace, construction machinery, and industrial equipment, ensuring reliable and durable weld structures.
